Home / Explosion-proof lighting / HX-ZFZD-E6W-CFD14

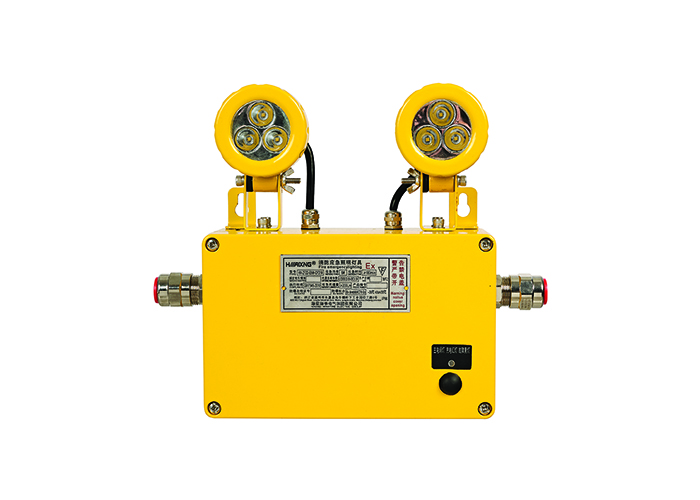

fire emergency lighting

HX-ZFZD-E6W-CFD14

Scope of application:suitable for emergency lighting for power failure in areas 1 and 2 such as chemical workshop warehouse gas station oil well platform oil mining and smelting all kinds ofMarine emergency channels and marine platform.

Explosion-proof mark:Ex db eb ib ⅡC T6 Gb
Rated voltage:AC100-240V 50/60Hz DC18V-36V
Power:6W
Illuminant:LED
Illuminous flux:≥200lm
Color temperature:5700K(optional:3000K 4000K5000K)
Protection class:IP66
Cable outside diameter:Φ10-Φ16
Installation method: wall-mounted type
Ambient temperature:-40℃-+55℃
Material: lamp body is high quality marine aluminium alloy lampshade is toughened glass
Weight:2.9 kg
Remark:emergency switching time≤0.2semergency time≥3h
