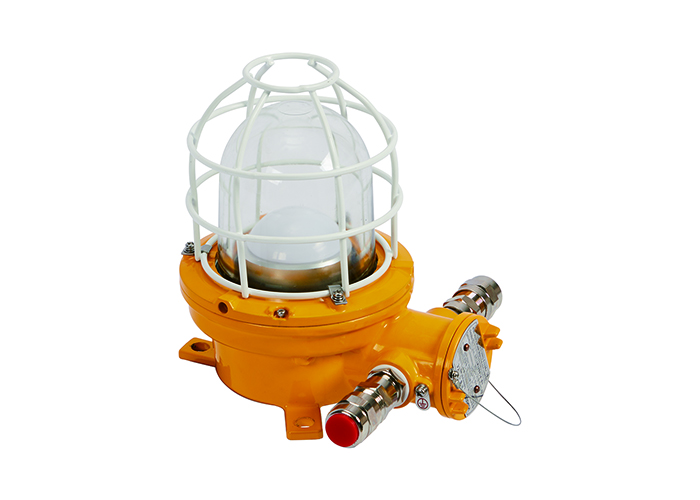

explosion-proof light
Scope of application：safe and reliable use in the area of Zone 1 and Zone 2 with explosive gas mixture. It is suitable for the grade of IIA、IIB 、IIC gas or steam environment the temperature group is T1~ T6. It is used as the lighting for the cabin and the open space.
Explosion-proof mark：Ex db ⅡC T6 Gb
Rated voltage：AC100-240V 50/60Hz DC24V
Power：Max.12W
Illuminant：LEDmodule
Illuminous flux：1000lm
Color temperature：5700K(optional:3000K 4000K5000K)
Protection class：IP66/IP67
Cable outside diameter：Φ10-Φ16
Installation method: ceiling-mounted typeseat type
Ambient temperature:-40℃-+55℃
Material: lamp body is stainless steel lampshade is toughened glass
Certificate：IECEX/ ATEX
Weight：6.5 kg
