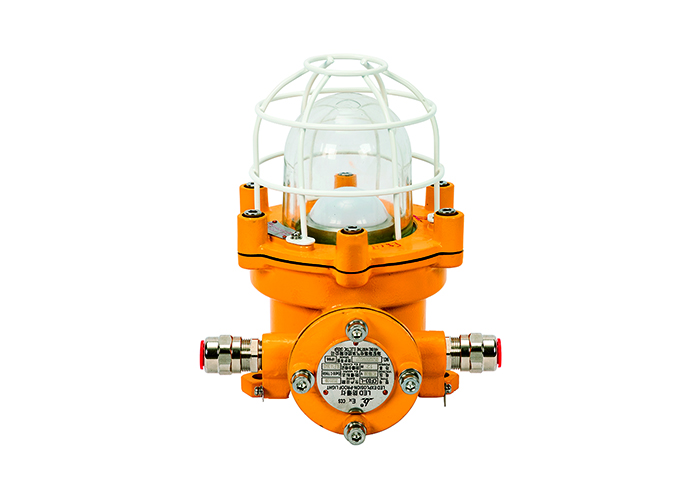

explosion-proof light
Scope of application：safe and reliable use in the area of Zone 1 and Zone 2 with explosive gas mixture. It is suitable for the grade of IIA、IIB 、IIC gas or steam environment the temperature group is T1~ T6. It is used as the lighting for the cabin and the open space.
Explosion-proof mark：Ex db ⅡC T6 Gb
Rated voltage：AC100-240V 50/60Hz DC24V
Power：12W/3W(DC24V)
Illuminant：LEDmodule
Illuminous flux：850lm/ 810lm(DC24V)
Color temperature：5700K(optional:3000K 4000K5000K)
Protection class：IP66
Cable outside diameter：Φ10-Φ16
Installation method: ceiling-mounted type seat type
Ambient temperature:-30℃-+55℃
Material: lamp body is brass lampshade is toughened glass
Weight：8 kg
