Navigation lights controller

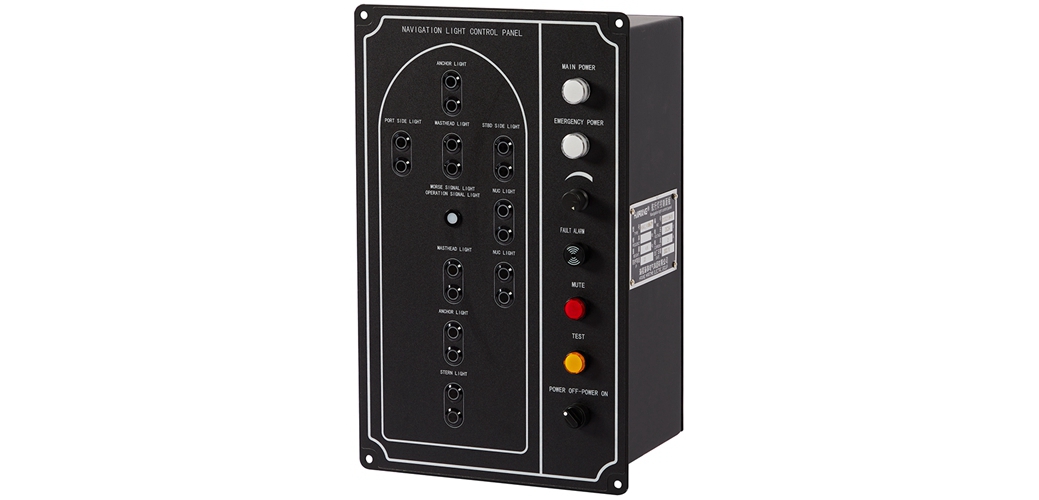

HX-NLC Navigation lights controller

Product features:
1)Provided with LED display and key operation simulate the location of the navigation light based on the real ship layout easy to observe and operate.
2)Support LED type navigation light
3)Equipped with sound-light failure alarm for navigation light and indicator dimming function
4)Equipped with main and standby power supply switching and failure alarm external communication interface and VDR interface and integrated alarm output interface



Technical Standard:
Rated voltage:DC24V、AC110V/50Hz、AC220V/50Hz、AC230V/50/60Hz
Controller power:10W
Output way: according to the requirement
Control power:100W/way
Output signal:Comprehensive alarm signal ( normally open passive contact)
Communication interface:1 way CAN 1way RS485(meet IEC 61162 requirement)
Protection class:Control panel IP22control box IP44
Installation method:Control panel recessed mounting control box wall-mounting or built-in bridge console
Ambient temperature:-10℃-+45℃
